Gage
Size |
Visible
Glass |
Gage Port C-C
(minimum) |
Vessel C-C
(minimun) |
|
|
-11
|
3.75
|
5.25
|
3.75
|
|
|
-12
|
4.75
|
6.25
|
4.75
|
|
|
-13
|
5.75
|
7.25
|
5.75
|
|
|
-14
|
6.75
|
8.25
|
6.75
|
|
|
-15
|
7.875
|
9.375
|
7.875
|
|
|
-16
|
9.125
|
10.625
|
9.125
|
|
|
-17
|
10.25
|
11.75
|
10.25
|
|
|
-18
|
11.875
|
13.375
|
11.875
|
|
|
-19
|
12.625
|
14.125
|
12.625
|
|
|
|
|
|
|
|
|
-24
|
15
|
16.5
|
15
|
|
|
-25
|
17.25
|
18.75
|
17.25
|
|
|
-26
|
19.75
|
21.25
|
19.75
|
|
|
-27
|
22
|
23.5
|
22
|
|
|
-28
|
25.25
|
26.75
|
25.25
|
|
|
-29
|
26.75
|
28.25
|
26.75
|
|
|
|
|
|
||
|
-36
|
30.375
|
31.875
|
30.375
|
|
|
-37
|
33.75
|
35.25
|
33.75
|
|
|
-38
|
38.625
|
40.125
|
38.625
|
|
|
-39
|
40.875
|
42.375
|
40.875
|
|
|
|
|
|
|
|
|
-47
|
45.5
|
47
|
45.5
|
|
|
-48
|
52
|
53.5
|
52
|
|
|
-49
|
55
|
56.5
|
55
|
|
|
|
|
|
|
|
|
-57
|
57.25
|
58.75
|
57.25
|
|
|
-58
|
65.375
|
66.875
|
65.375
|
|
|
-59
|
69.125
|
70.625
|
69.125
|
|
|
|
|
|
|
|
|
-68
|
78.75
|
80.25
|
78.75
|
|
|
-69
|
83.25
|
84.75
|
83.25
|
|
|
|
|
|
|
|
|
-78
|
92.125
|
93.625
|
92.125
|
|
|
-79
|
97.375
|
98.875
|
97.375
|
|
|
|
|
|
|
|
|
-88
|
105.5
|
107
|
105.5
|
|
|
-89
|
111.5
|
113
|
111.5
|
|
|
|
|
|
|
|
|
-98
|
118.875
|
120.375
|
118.875
|
|
|
-99
|
125.625
|
127.125
|
125.625
|
|
|
|
|
|
|
|
|
-108
|
132.25
|
133.75
|
132.25
|
|
|
-109
|
139.75
|
141.25
|
139.75
|
|
Advantages…
Advantages of “Close Hook-Up” style vs off-the-shelf “End Connected” gages are:
• More visible glass length for established vessel centers
• Permits use of gage valves with spherical union vessel connections, for much greater
flexibility during fit-up…. the spherical joint overcomes misalignment of fittings, reduces mechanical stress in piping, insures leak tight joint when a conventional flat union connection fails to close the gap… useful on horizontal vessels without bridles, where nozzles are planted “on the hillside” and difficult to plumb.
to Size and Specify…

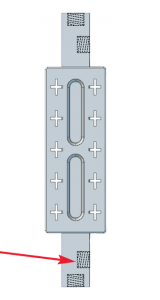

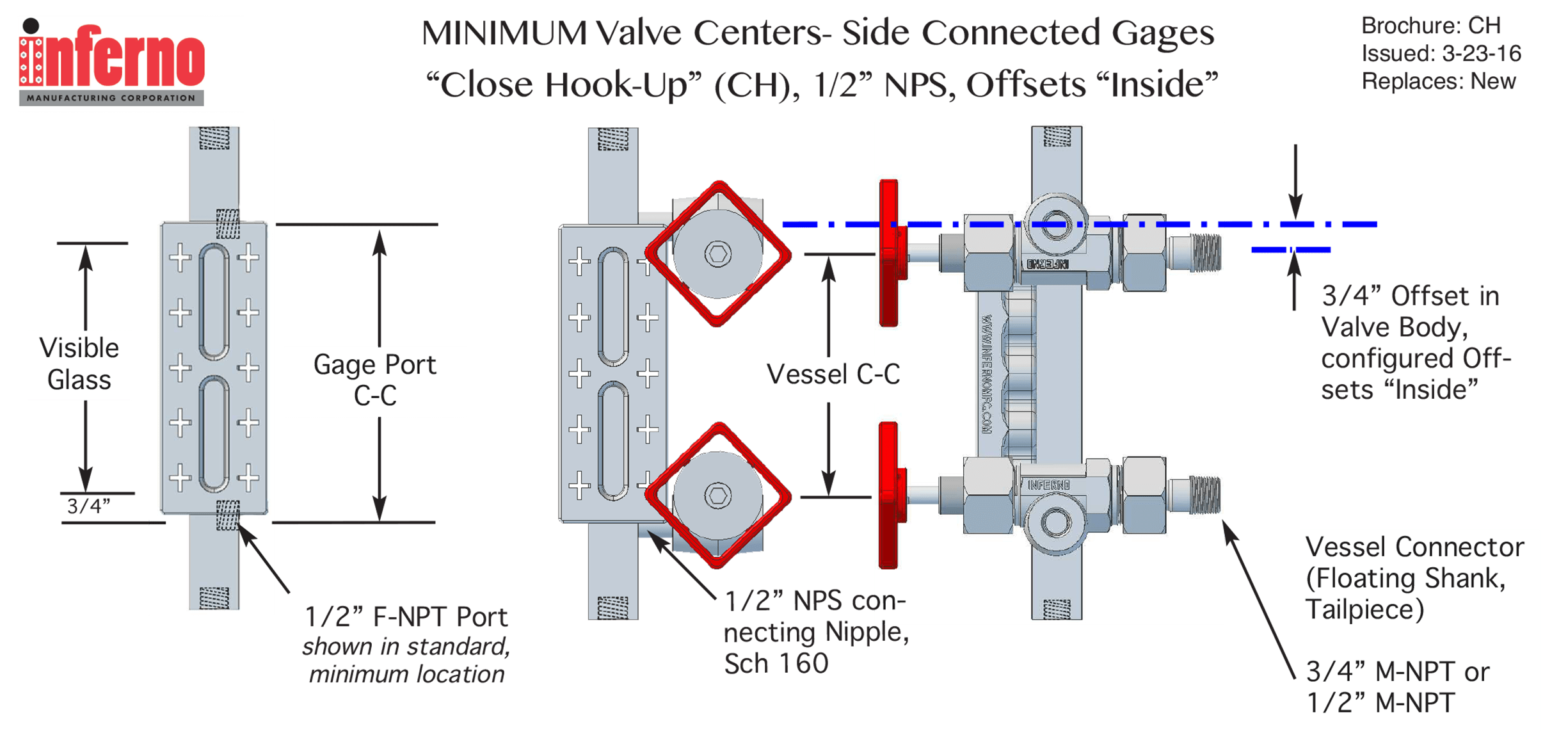

1 Choose the row with the largest “Vessel C-C” that is equal to or less than the actual vessel C-C. Read left for “Gage Size”. Designate “CH” as in R100-39 CH, T100-14 CH etc- or if preferred use nine-letter suffix system
2Order by gage size and actual vessel center to center. No need to specify Gage Port C-C. Actual vessel centers are required by Inferno before manufacture.
3 Extended Gage Port centers are available to match any longer vessel center to center.
Notes…
1Dimensions shown are for gages with 1/2” F-NPT ports. Add 3/8” for gages with 3/4” F-NPT ports.
2 Inferno gage valves: 15A, FT15, FT25, have 3/4” internal offset same as Brand “P” but different from 7/8” in other brands.
Offsets Inside vs Outside vs Parallel… Inferno gage valves Offsets Inside vs Outside vs Parallel… Inferno gage valves configured w offsets “Outside” add 3” to the “Vessel C-C’ . If valves can be assembled with offsets “Parallel” add 1-1/2” to dimension shown. For illustrations of four ways see Inferno Drawing A111517.
