Level Gage Selection

The Level-Trac Model 500 probe manifold features sturdy construction in full compliance with ASME Section 1 requirements. Each column is custom built to the customer’s individual specifications. The chamber is a custom extrusion designed to provide full probe thread engagement.

  • Max 1000 PSI
  • SA-105 Extruded Chamber
  • Horizontal Probe Mounting
  • Probe Spacing per Customer’s Requirements
  • Optional Connections for Direct Reading Sight Glasses

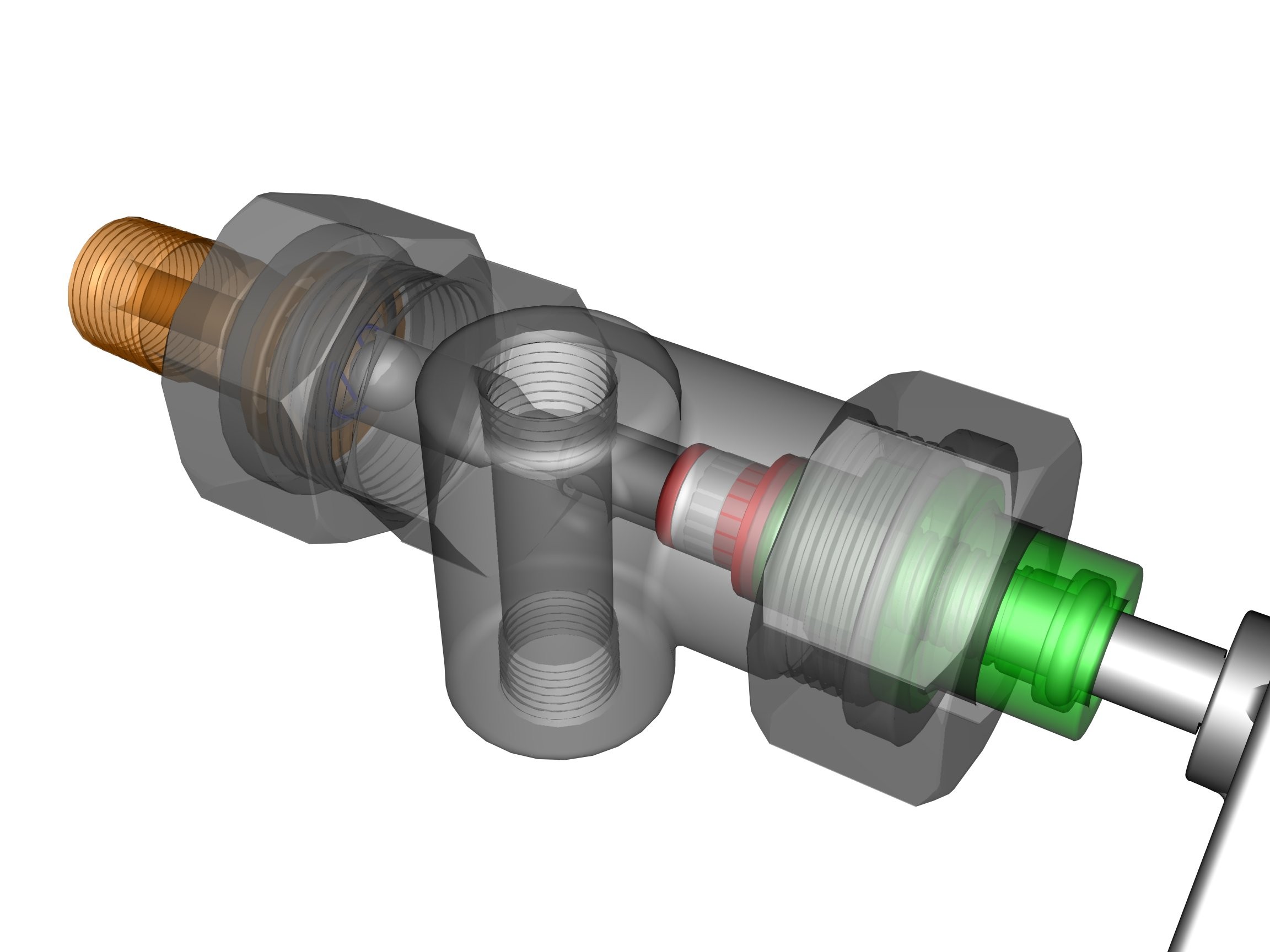

  • Type 800, TFE Insulated Probe
  • Piping Connections to Meet Customer Specifications

Specs

Chamber A-105 Extruded
Probe Guard 304 SS Sheet Metal
Probe Mounting Horizontal Probe Mounting
Probe Type Type 800
Probe Material TFE Insulated Probe, Metaflex Gasket Seal
Probe Gasket Spiral Wound
Rating 1000 PSI Steam Working Pressure, 550°F
