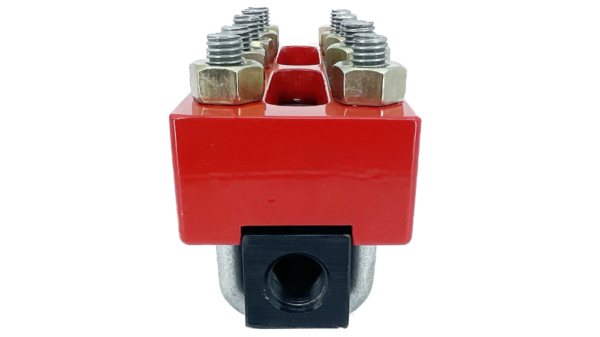

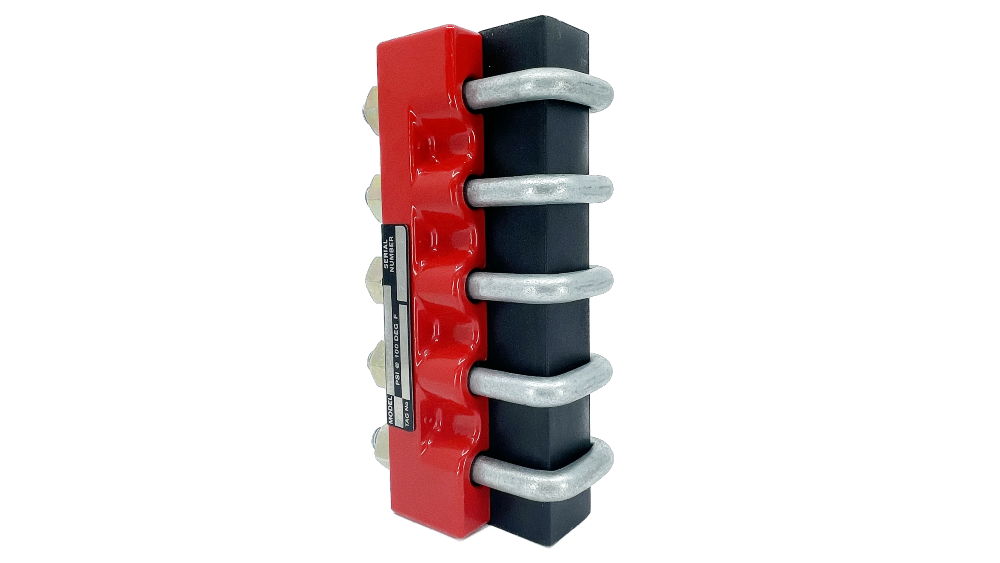

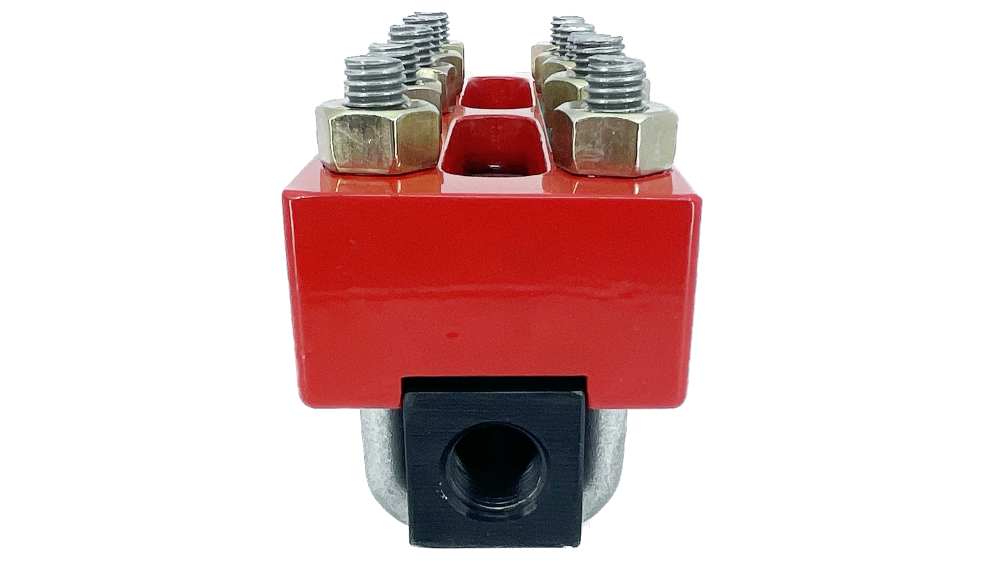

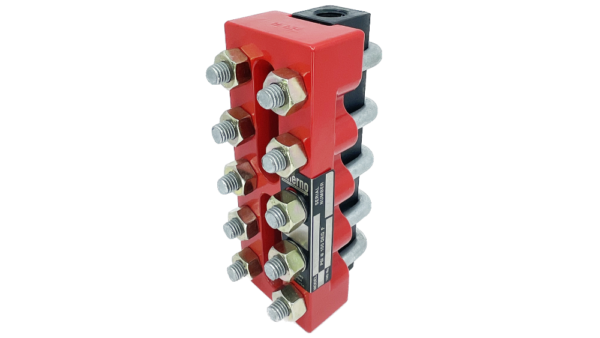

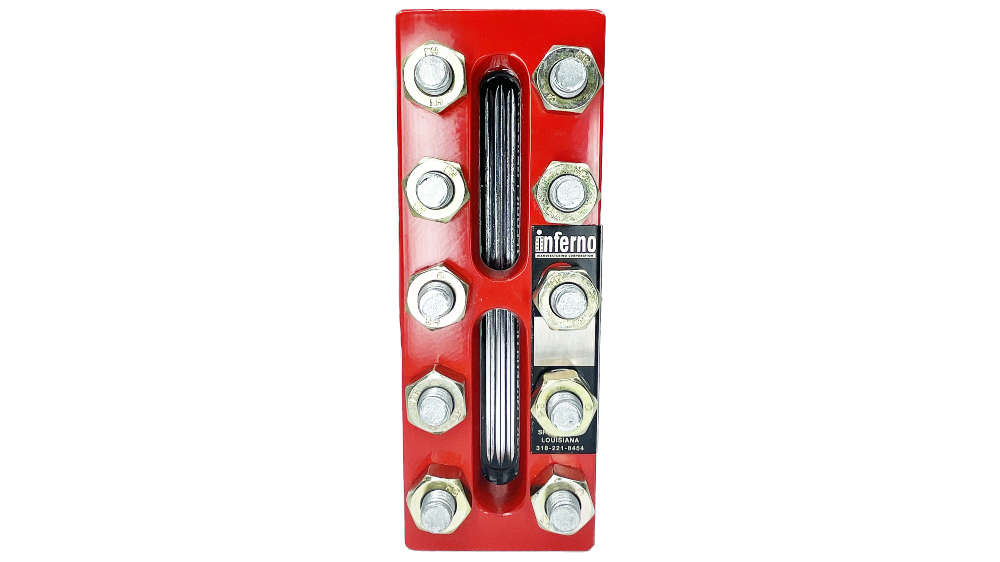

Reflex Style Flat Glass Column Gage
Inferno Reflex Gages use a prismed glass to represent the liquid level. All liquids in contact with the glass will appear black while the non-contacted glass will appear shinny creating a bold contrast.
Stock gages feature ½” NPT threads but ¾” NPT are available.
Standard level gage construction is designed for -20°F service.
Features
For pressures up to 2810 PSI @ 100°F
Tapped for ½” or ¾” NPT
Temperatures up to 572°F non-steam
Stock on all sizes up to three section
Optional materials available to meet specific process conditions
Specs
Wetted gage chamber conforms to NACE MR0175
Tempered borosilicate glass temperature rating 572°F per manufacturer
Saturated steam up to 250 WSP with belleville washers
Above 250 WSP, use transparent gage with mica shields
