Tubular Gauge Valves
Common Features Model 12T & FT-TUB:
- Viton ™ O-Ring size -208
- NACE Conformance…
- Glass Length: C-C minus 2
Offset Pattern– allows brush access while valve closed
3/4″ M-NPT Vessel
5/8″ 0 Stuffing Box
1/2″ F-NPT Vent & Drain

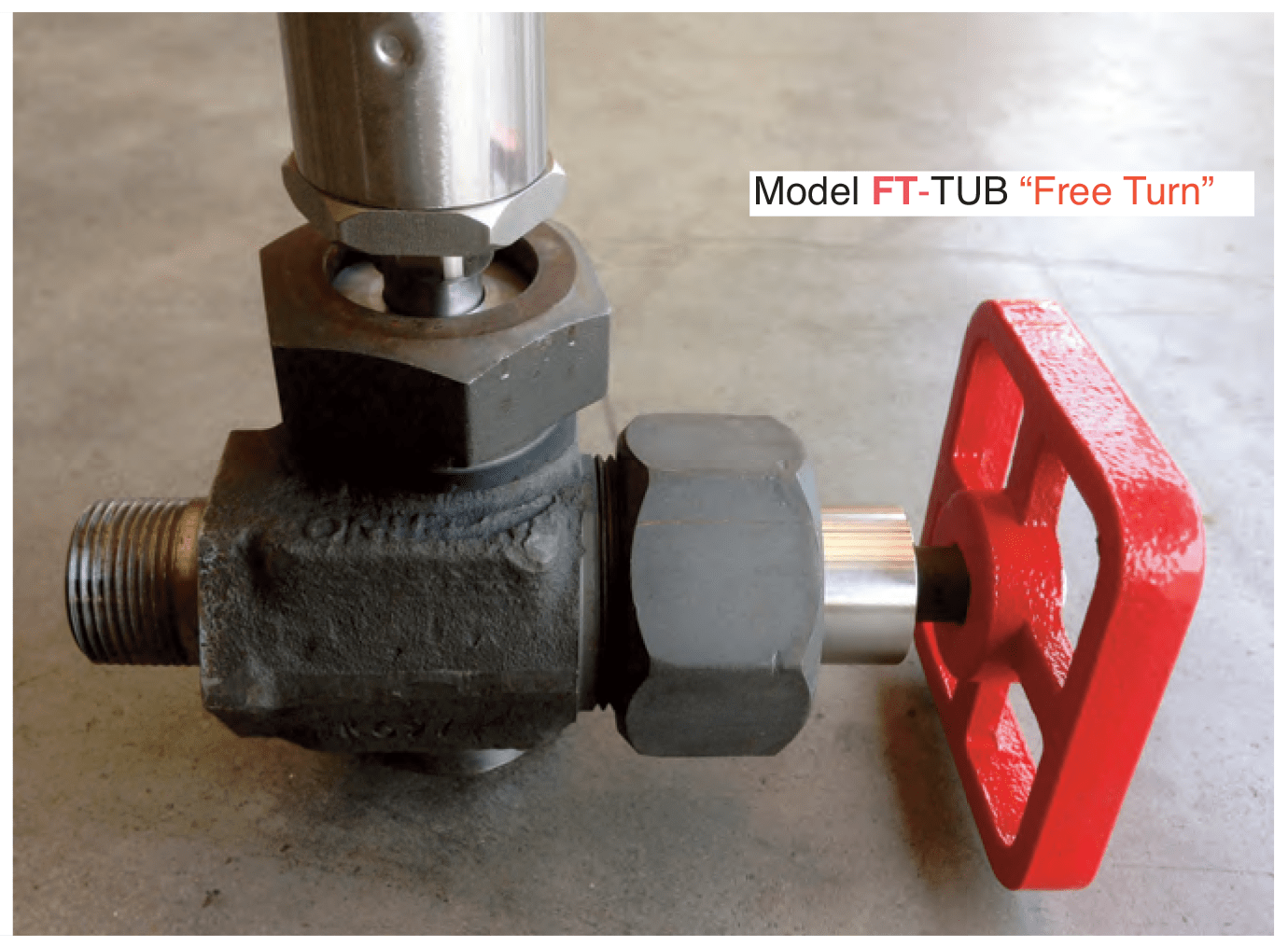

Model FT “Free Turn” valve design
Isolates the valve workings from salt water and H2S-prevents internal corrosion that causes conventional valves to seize. Steel body and SS trim suitable for sour service.
